Pikauba

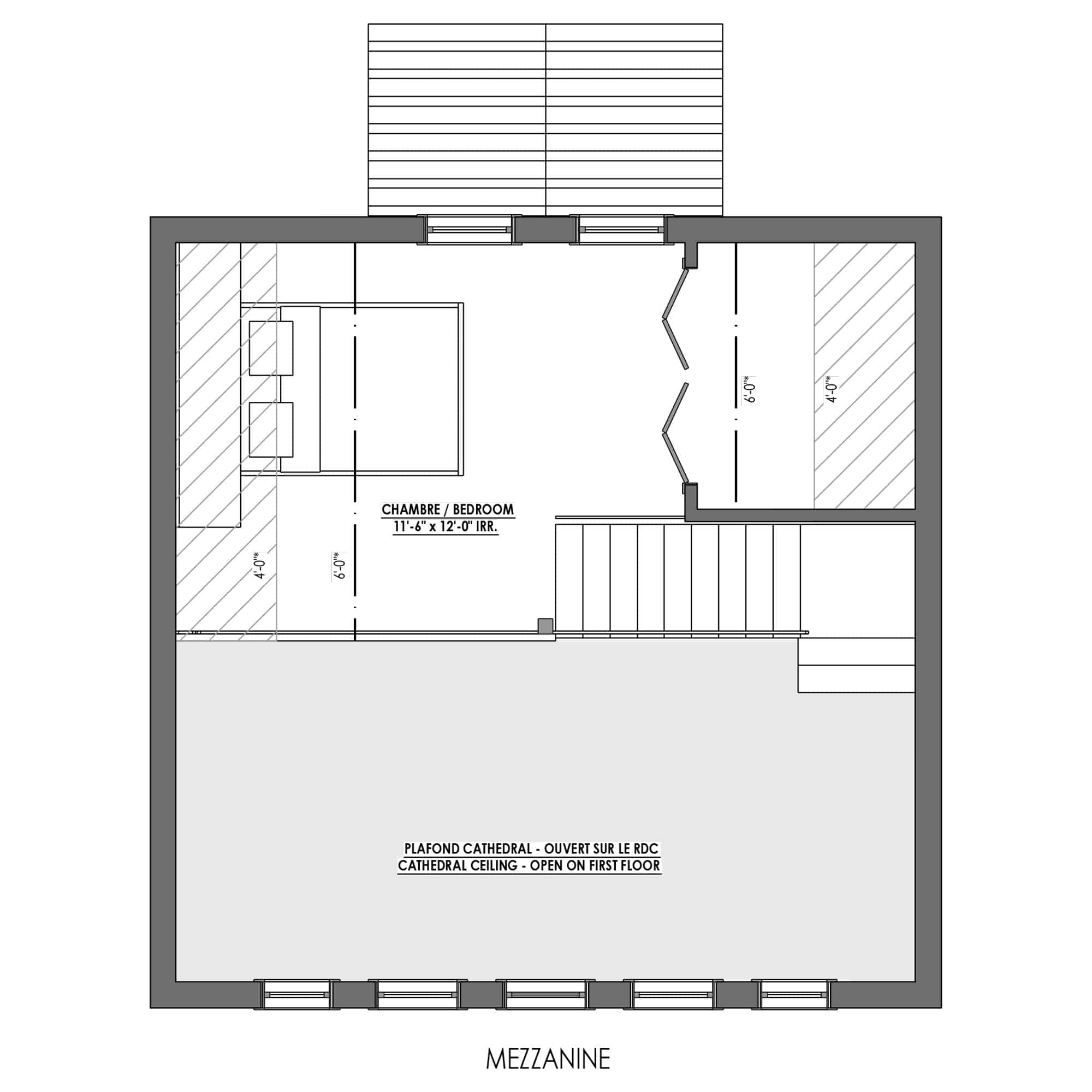

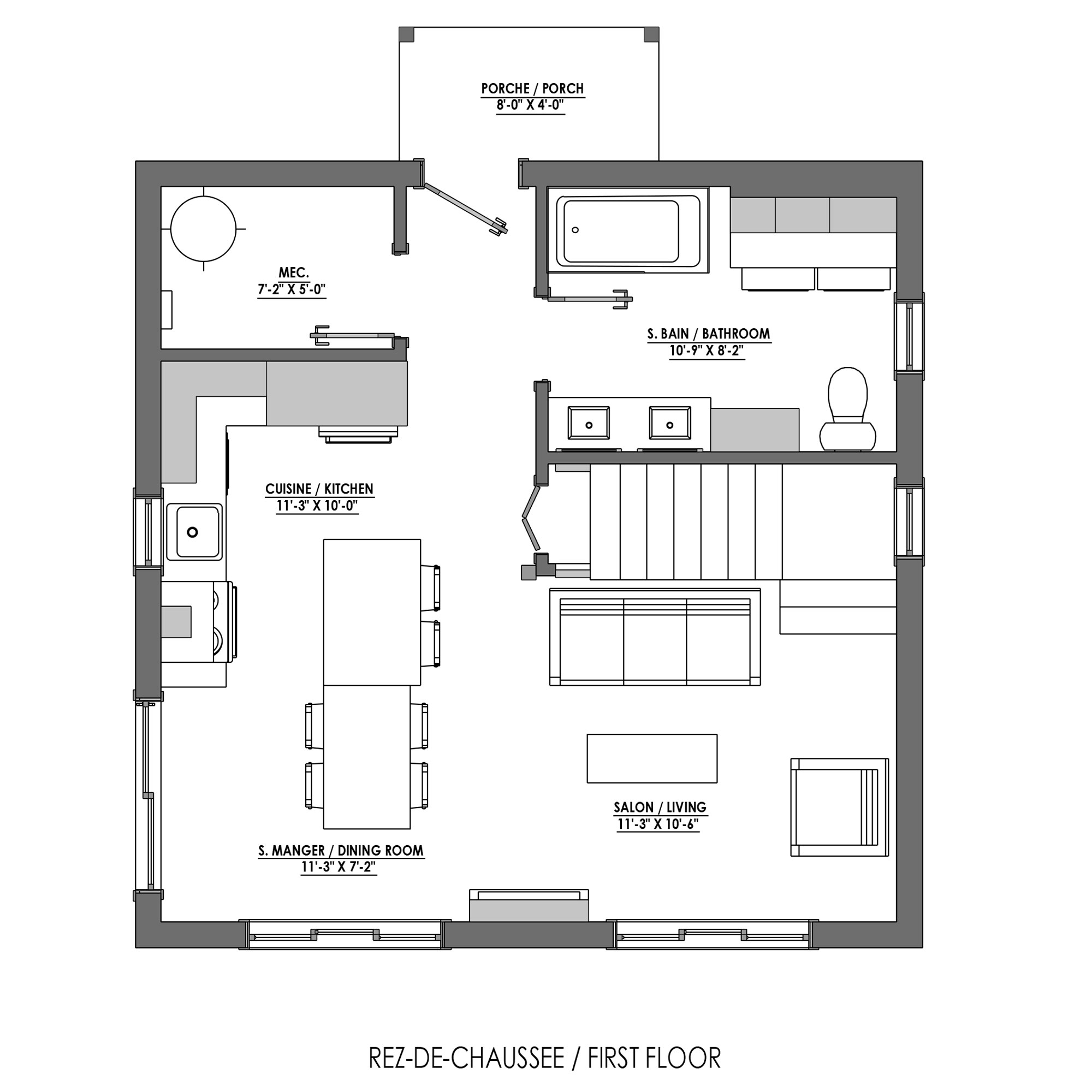

Plans

  • sizes available 24’x 24′ / 24′ x 28′ / 28′ x 28′ / 28′ x 32′

  • 24’x24′

  • 24’x28′

  • 28’x28′

  • 28’x32′

Options

Dimensions Small (500sq.ft à 800sq.ft)
Nb of floors 2 Floors
Nb of rooms 1 Floor
Nb of bathrooms 2 Bathrooms

Description

  • R-24.5 or R-30 Thermolog in a flat profile
  • R-30 Thermolog in a half-log profile

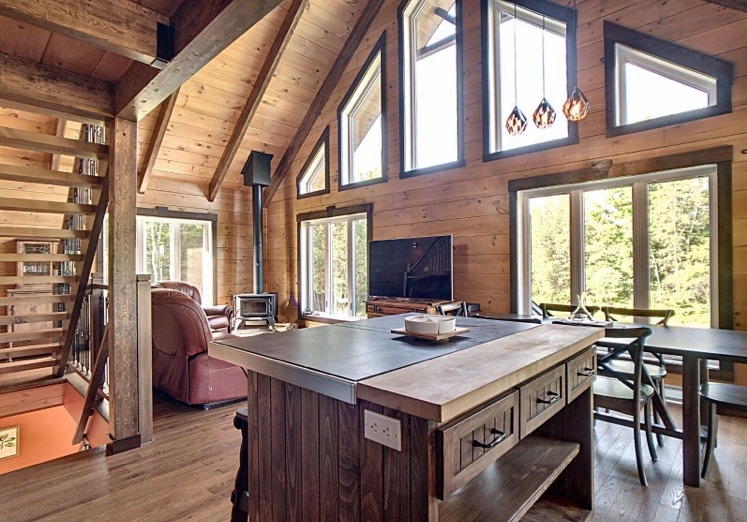

  • 10 ft. high ceiling
  • 10/12 roof pitch
  • 48” front gable overhang

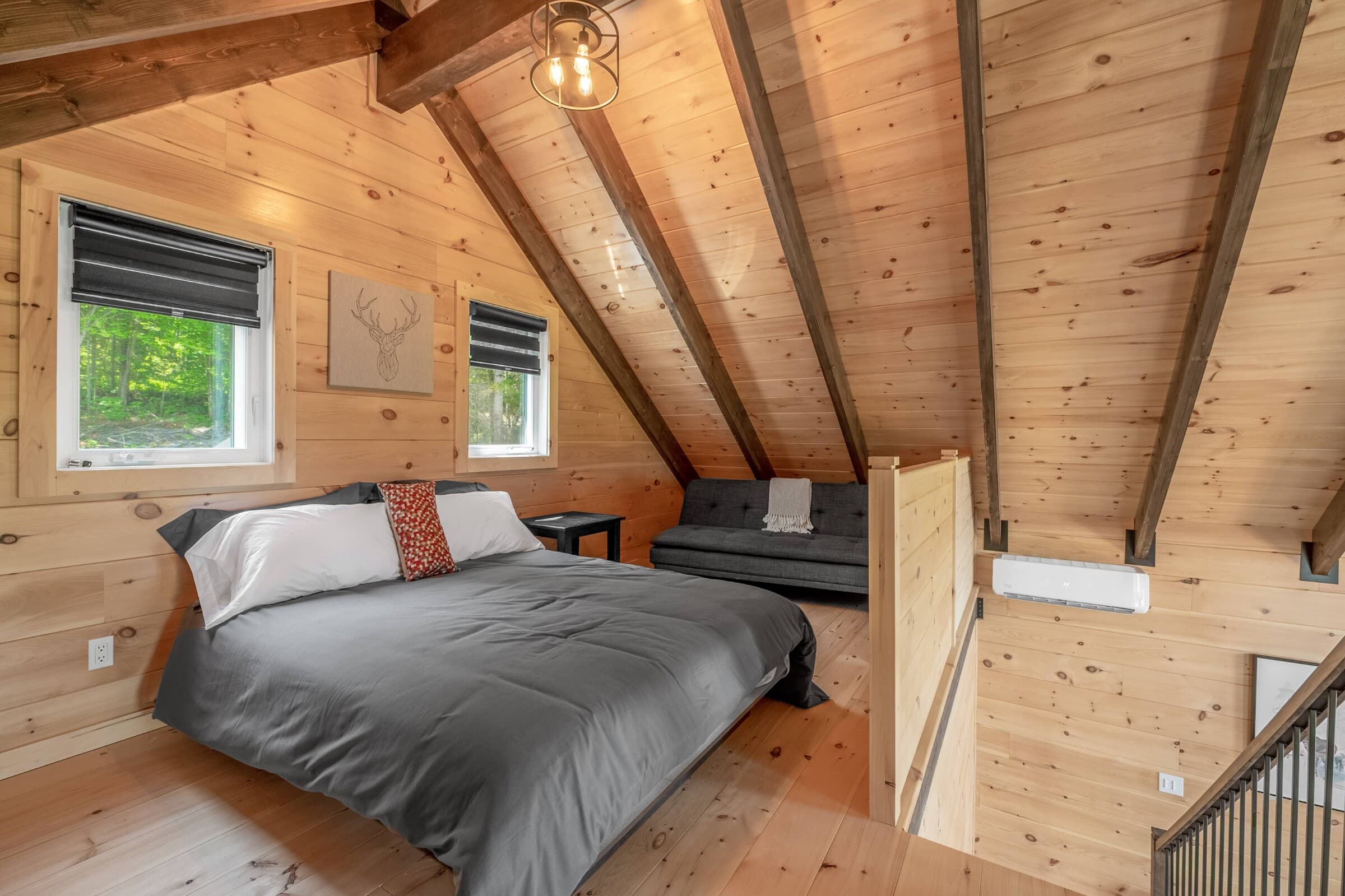

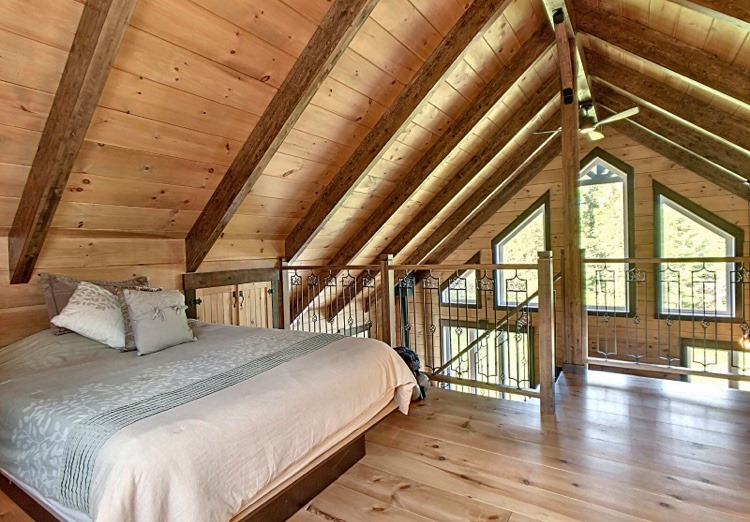

  • Timber-framed mezzanine structure
  • Timber-framed roof structure

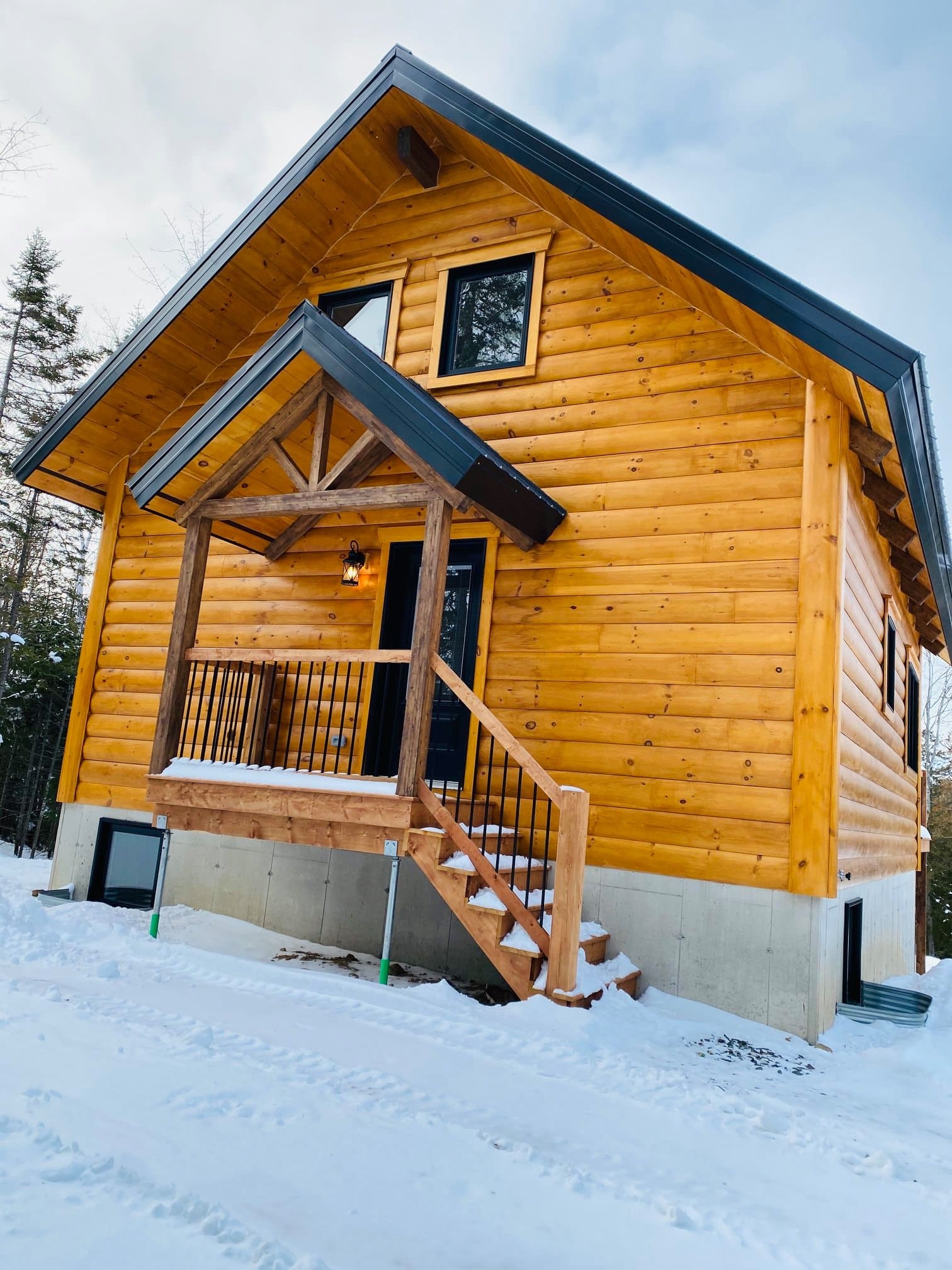

  • Timber-framed rear entrance porch structure
  • R-45 roof insulation

Inclusions

Wall Structure

  • Complete assembly plan
  • Thermolog: cut, 9 1/16’’ x (7 7/8″ until 9 9/16″) numbered pieces, palettized
  • Hardware (treated screws, structural screws)
  • Urethane insulation cans
  • Wood for corner splines
  • Structural corners with capping
  • Wood mouldings for box-end joist
  • Adseal-brand sealant tubes
  • Wood filler tubes
  • 6’’ sill plate gasket rolls
  • Urethane cans
  • Conceal-brand sealant tubes

Mezzanine Structure

  • Fully timber-framed structure: joists and columns
  • Black metal joist hangers with structural screws
  • 1/4″ thick white pine tongue and groove flooring

Roof Structure

  • Fully timber-framed structure: rafters, ridge poles and columns

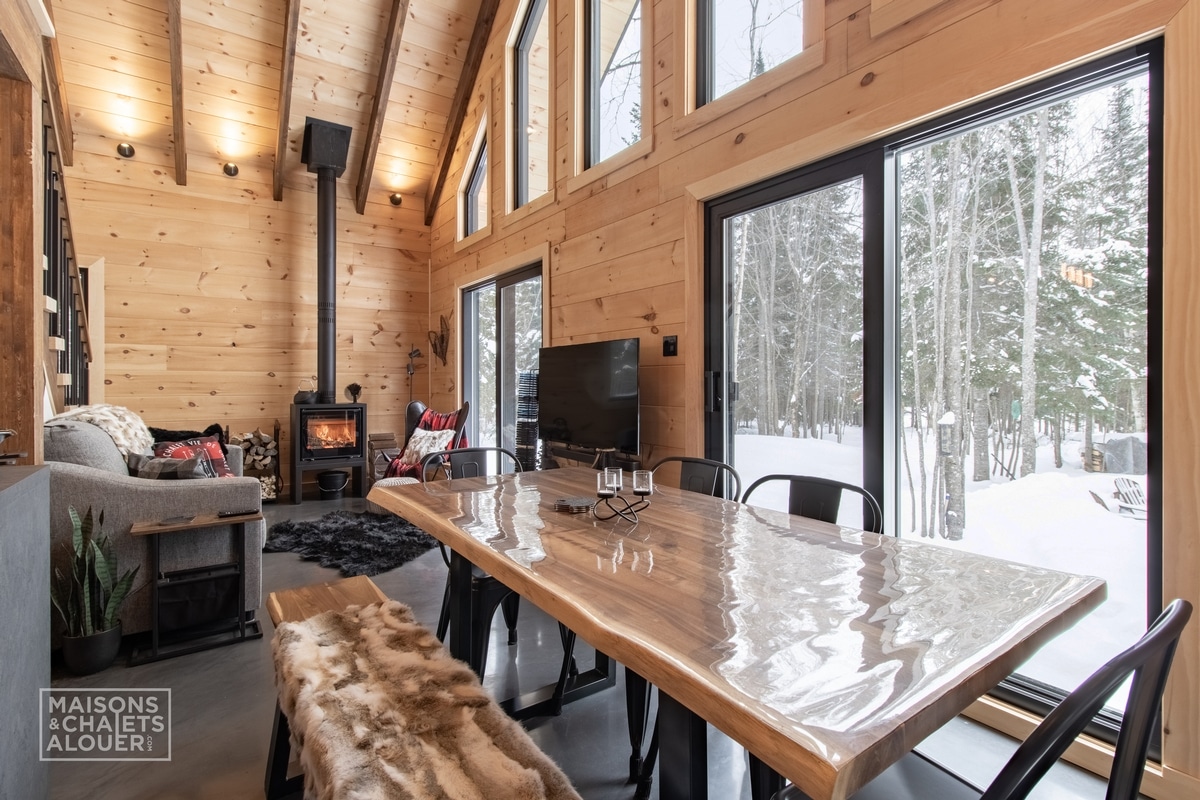

  • Exposed 1 1/4″ thick white pine tongue and groove ceiling
  • Synthetic vapour barrier membrane (double-layered)
  • 3 ½’’ rigid insulation boards (double-layered)
  • Structural screws
  • Urethane cans for roofing and between rafters
  • Front gable decoration
  • Rolls of steel mosquito screening
  • Air vents

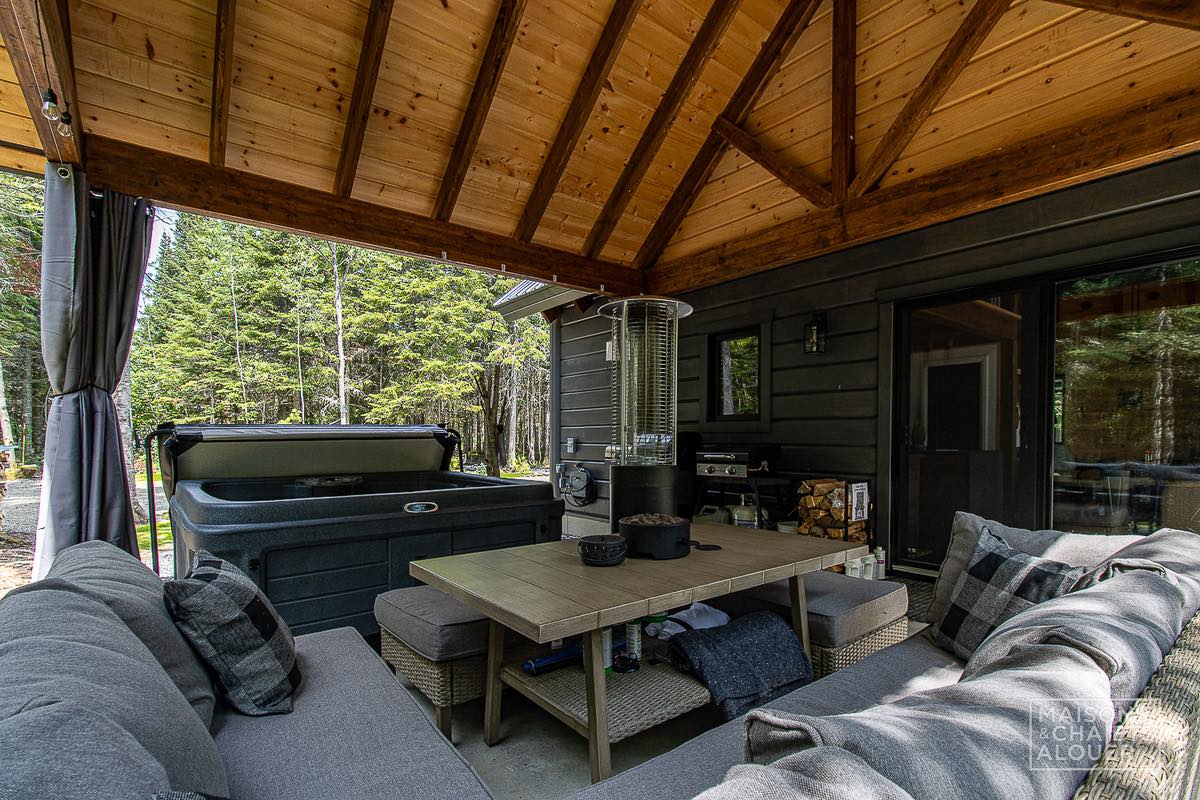

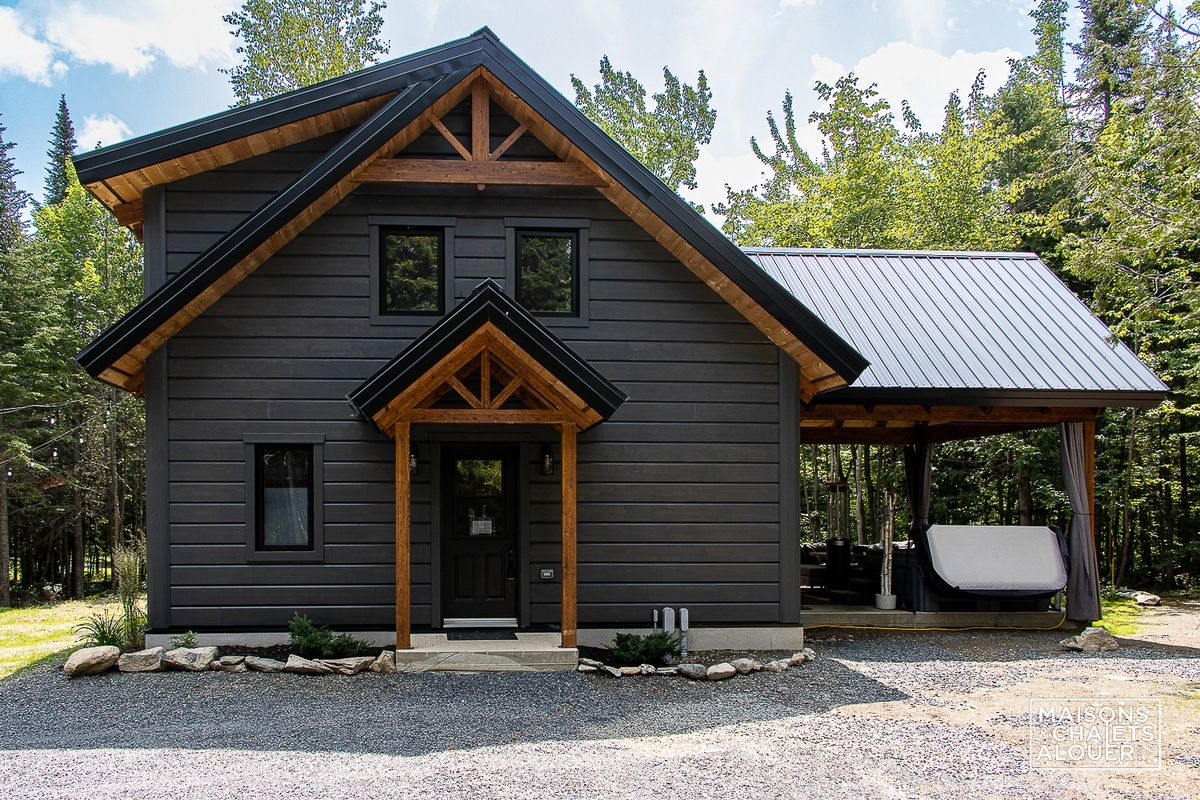

 Back Porch Structure

  • Fully timber-framed structure: rafters, ridge pole and columns
  • Exposed 1 1/4″ thick white pine tongue and groove ceiling
  • Structural screws

 Hardware

  • Dispensing gun for urethane cans (1x)
  • Dispensing gun for backer (1x)
  • ¾’’ x 9’’ drill bit
  • Pine mouldings for exterior doors and windows

 Steel Roofing and Hardware

  • Steel roofing: 29 gauge / 80 000 in2
  • Steel flashings
  • Steel fascias
  • Roof vent
  • Closure strips
  • Roof screws
  • Steel valley flashing
  • Steel drip flashings for wood buildings

Doors and Windows

  • Hybrid windows with 5 1/2″ frame
  • Front door: coloured steel exterior / white interior (selected models)
  • Patio door: coloured aluminum exterior / white interior
  • Hybrid windows: coloured aluminum exterior / white PVC interior
  • Double-paned windows / argon gas
  • Self-adhesive membrane
  • Wedge shim
  • Steel head flashing
  • Wood splines
  • Door and patio door sill extension
  • Traditional J moulding
  • 5 standard colours: white, black, commercial brown, wood grey, anodized aluminum
  • We offer other colour options at additional cost

Not included: jamb extensions, handles, door locks.

Price

Price subject to change without notice. The price displayed in store takes precedence
Shipping and taxes excluded

Prix à partir de :
24' x 24' (R-24,5) 73 531$
24' x 24' (R-30) 76 466$
24' x 28' (R-24,5) 81 706$
24' x 28' (R-30) 84 863$
28' x 28' (R-24,5) 92 875$
28' x 28' (R-30) 96 359$
28' x 32' (R-24,5) 103 311$
28' x 32' (R-30) 107 028$
Contact us

Assembly options

Owner-Builder

Ideal for the do-it-yourself builder and the most cost effective option!
All of Boreal’s models are offered as a self-build kit. You can take charge of the assembly of your building thanks to the ingenuity of the construction method and the quality of the fabrication.

But you are never alone! We provide you with a technical manual illustrating each step for assembling your project. You will also find a collection of technical videos on our website explaining the assembly techniques. If you have any questions, we are only a phone call away.

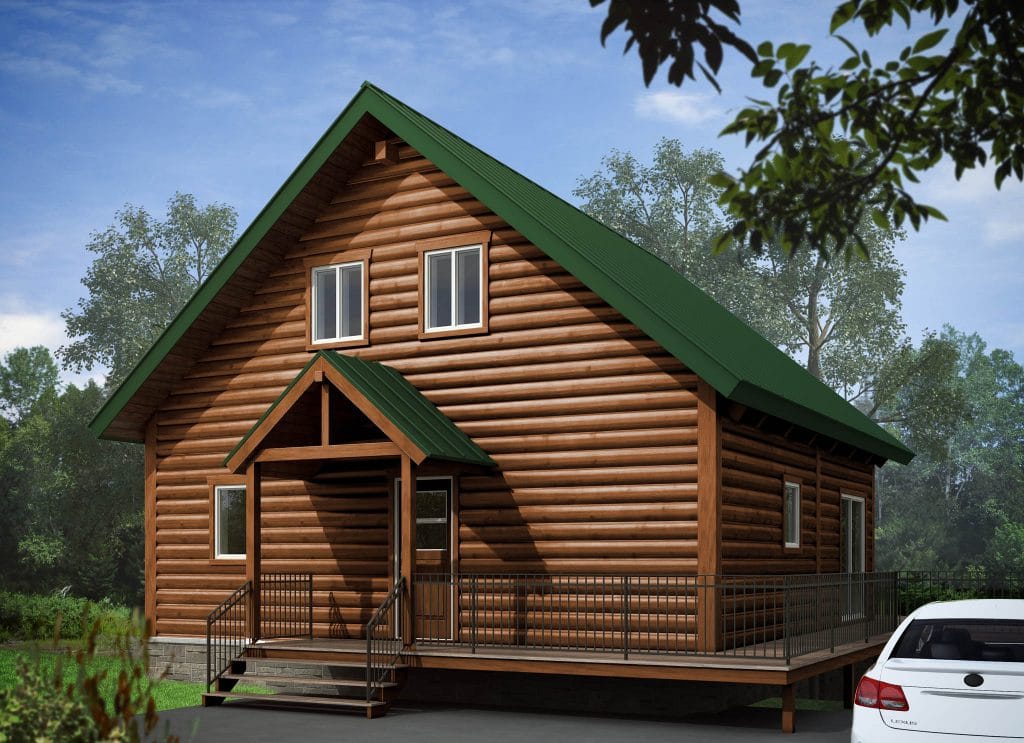

Your Boreal building will be delivered on the site of your choice. As is the case for all our kits, the basic models can be modified according to your preferences. You can therefore select the type of exterior siding you prefer: the rustic charm of the half-log or a chic flat profile.

To summarize the advantages of the owner-builder kit:

1. Time and assembly cost savings
2. The most affordable new build
3. Training to assemble your project
4. A technical manual and videos to assist you
5. Telephone support during construction

All of Boreal’s advantages:

1. Unprecedented insulation performance
2. Unequalled construction stability
3. Easy assembly without heavy equipment
4. Grandiose timber-frame structures
5. Can be tailored to any style or dimensions



Shared Assembly

Affordable professional assistance.

All of Boreal’s models are offered as a “shared assembly” kit. You are the king of building your castle: delegate tasks as you see fit! Boreal’s qualified team will take care of the framing and any other work you want us to handle. You take care of the rest or hire the contractor of your choice. You’re the boss!

This is an “à la carte” option to help you construct your home. You can work with an experienced team during the assembly steps you prefer we handle all while saving on the other tasks you want to take care of yourself.

Your Boreal building will be delivered on the site of your choice. As is the case for all our kits, the basic models can be modified according to your preferences. You can therefore select the type of exterior siding you prefer: the rustic charm of the half-log or a chic flat profile.

To summarize the advantages of the shared assembly kit:

  1. The advantages and affordability of an “à la carte” build
  2. Access to specialized tools and equipment
  3. A technical manual and videos to assist you
  4. Telephone support during construction

All of Boreal’s advantages:

  1. Unprecedented insulation performance
  2. Unequalled construction stability
  3. Easy assembly without heavy equipment
  4. Grandiose timber-frame structures

Assembled Shell

** AVAILABLE ONLY WITH OUR DISTRIBUTORS AND / OR GENERAL CONTRACTORS IN CERTAIN REGIONS **

Maximum control but peace of mind !

Depending on your region of Quebec, Boréal may refer you to certified general contractors who will be able to offer you the construction of your building in an “assembled shell” package or if you are doing business with one of our distributors, he will be able to offer you his own service or refer you to a contractor in your area. The installation team will assemble the floors, frame, roof and other structural elements of the building, on the foundation you have previously built. You then have full control over the selection and installation of cabinetry, plumbing, electrical, siding and interior finishing.

This package ensures you construction at your own pace. The assembled shell gives you the freedom to choose your own workforce and materials to reduce costs or to take advantage of other related benefits, according to your own schedule.

Your Boréal building will be delivered to you at the location of your choice. As with all our sets, the basic models can be modified to your liking. You will be able to choose the type of exterior covering that you like the most; the charm of the rustic half-round or the chic flat profile.

Let’s summarize the advantages of the assembled shell package:

1- The possibility of building your home at your own pace.
2- Ensuring compliance with Boréal assembly techniques.
3- A manufacturing guarantee on labor.
4- A technical guide and videos to accompany you.
5- Phone support during construction.

All the advantages of Boréal Products:
1- Unprecedented insulation performance.
2- Unequaled construction stability.
3- Easy assembly without heavy equipment.
4- Grandiose timber-frame structures.
