Iberville

Plans

Options

Dimension Medium (800sq.ft à 1200sq.ft)
Nb of floors 1 Floor
Nb of rooms 2 Bedrooms
Nb of bathrooms 1 Bathroom

Description

  • R-24.5 or R-30 Thermolog in a half-log or flat profile
  • R-30 Thermolog in a bevel profile

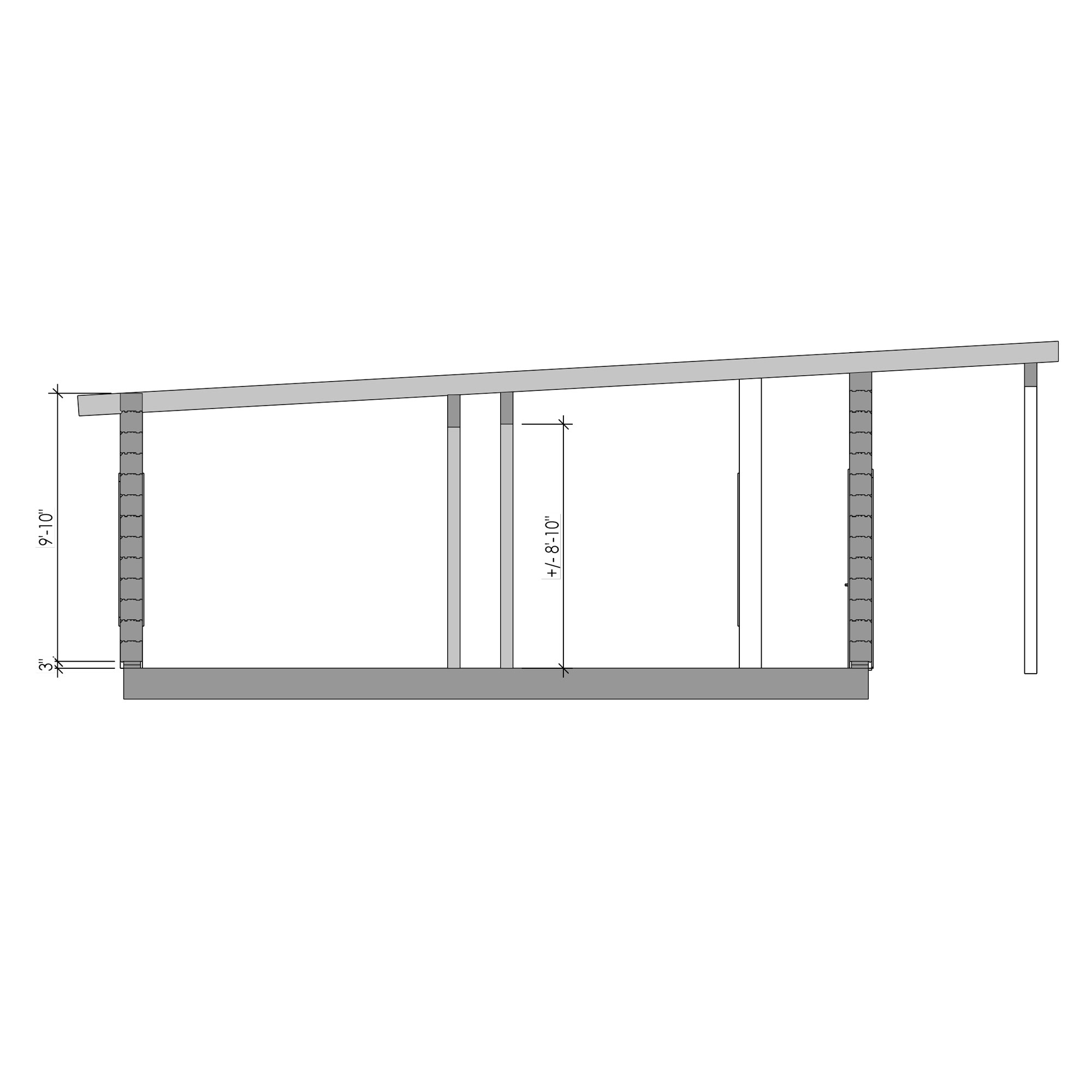

  • 10 ft. high ceiling
  • Low pitch roof
  • Timber-framed roof structure
  • Timber-framed front and side veranda structure
  • R-45 roof insulation

Inclusions

Wall Structure

  • Complete assembly plan
  • Thermolog: cut, 9 1/16’’ x 8 ½’’ numbered pieces, palettized
  • Hardware (treated screws, structural screws)
  • Urethane insulation cans
  • Wood for corner splines
  • Structural corners with capping
  • Wood mouldings for box-end joist
  • Adseal-brand sealant tubes
  • Wood filler tubes
  • 6’’ sill plate gasket rolls
  • Urethane cans
  • Conceal-brand sealant tubes

Roof Structure

  • Fully timber-framed structure: rafters, ridge poles and columns
  • Exposed 1 7/16’’ thick white pine tongue and groove ceiling
  • Synthetic vapour barrier membrane (double-layered)
  • 3 ½’’ rigid insulation boards (double-layered)
  • Structural screws
  • Urethane cans for roofing and between rafters
  • Rolls of steel mosquito screening
  • Air vents

 Front and Side Porch Structure

  • Full timber-framed structure: joists and columns
  • Exposed 1 7/16’’ thick white pine tongue and groove ceiling
  • Structural screws

 Hardware

  • Dispensing gun for urethane cans (1x)
  • Dispensing gun for backer (1x)
  • ¾’’ x 9’’ drill bit
  • Pine mouldings for exterior doors and windows

 Steel Roofing and Hardware

  • Not included in price: steel wall siding + roofing + hardware
  • This model has a low pitch roof. You must therefore install a sealing membrane as the roofing. Please consult a contractor in your region.

Doors and Windows

  • Laflamme company windows / Econova hybrid model / 5 5/16’’ frame
  • Front door: coloured steel exterior / white interior (selected models)
  • Porte-patio : coloured aluminum exterior / white PVC interior
  • Hybrid windows: coloured aluminum exterior / white PVC interior
  • Double-paned windows / argon gas
  • Self-adhesive membrane
  • Wedge shim
  • Steel head flashing
  • Wood splines
  • Door and patio door sill extension
  • Traditional J moulding
  • 5 standard colours: white, black, commercial brown, wood grey, anodized aluminum
  • We offer other colour options at additional cost

Not included: jamb extensions, handles, door locks.

Price

Transport and taxes excluded

Assembly packages

Owner-Builder

Ideal for the do-it-yourself builder and the most cost effective option!
All of Boreal’s models are offered as a self-build kit. You can take charge of the assembly of your building thanks to the ingenuity of the construction method and the quality of the fabrication.

But you are never alone! The owner-builder kit includes one day of training to give you all the resources you need to assemble your dream building. We provide you with a technical manual illustrating each step for assembling your project. You will also find a collection of technical videos on our website explaining the assembly techniques. If you have any questions, we are only a phone call away.

Your Boreal building will be delivered on the site of your choice. As is the case for all our kits, the basic models can be modified according to your preferences. You can therefore select the type of exterior siding you prefer: the rustic charm of the half-log, a chic flat profile or an urban slanted finish.

To summarize the advantages of the owner-builder kit:

1. Time and assembly cost savings
2. The most affordable new build
3. Training to assemble your project
4. A technical manual and videos to assist you
5. Telephone support during construction

All of Boreal’s advantages:

1. Unprecedented insulation performance
2. Unequalled construction stability
3. Easy assembly without heavy equipment
4. Grandiose timber-frame structures
5. Can be tailored to any style or dimensions



Shared Assembly

Affordable professional assistance.

All of Boreal’s models are offered as a “shared assembly” kit. You are the king of building your castle: delegate tasks as you see fit! Boreal’s qualified team will take care of the framing and any other work you want us to handle. You take care of the rest or hire the contractor of your choice. You’re the boss!

This is an “à la carte” option to help you construct your home. You can work with an experienced team during the assembly steps you prefer we handle all while saving on the other tasks you want to take care of yourself.

Your Boreal building will be delivered on the site of your choice. As is the case for all our kits, the basic models can be modified according to your preferences. You can therefore select the type of exterior siding you prefer: the rustic charm of the half-log, a chic flat profile or an urban slanted finish.

To summarize the advantages of the shared assembly kit:

  1. The advantages and affordability of an “à la carte” build
  2. Access to specialized tools and equipment
  3. A technical manual and videos to assist you
  4. Telephone support during construction

All of Boreal’s advantages:

  1. Unprecedented insulation performance
  2. Unequalled construction stability
  3. Easy assembly without heavy equipment
  4. Grandiose timber-frame structures

Assembled Shell

Maximum control with piece of mind!

All of Boreal’s models are offered as an “assembled shell” kit. The Boreal team will take care of assembling the floors, the framing, the roof and other elements related to the building’s structure on the foundation that you will have laid beforehand. You then have complete control over choosing and installing the cabinets, plumbing, electric wiring, siding and interior finishes.

This kit allows you to build at your own pace. The assembled shell gives you the freedom to choose your own workforce and materials to reduce costs or to take advantage of other related benefits, according to your own schedule.

Your Boreal building will be delivered on the site of your choice. As is the case for all our kits, the basic models can be modified according to your preferences. You can therefore select the type of exterior siding you prefer: the rustic charm of the half-log, a chic flat profile or an urban slanted finish.

To summarize the advantages of the assembled shell kit:

  1. The flexibility to build at your own pace
  2. The certainty that Boreal’s assembly methods have been followed
  3. A fabrication guarantee as to workmanship
  4. A technical manual and videos to assist you
  5. Telephone support during construction

All of Boreal’s advantages:

  1. Unprecedented insulation performance
  2. Unequalled construction stability
  3. Easy assembly without heavy equipment
  4. Grandiose timber-frame structures

Turnkey

*Only available in certain regions.*

Contact the Boreal team to obtain information on which regions offer turnkey services.
